Difficult: Hard
Category: Mobile
OS: Android

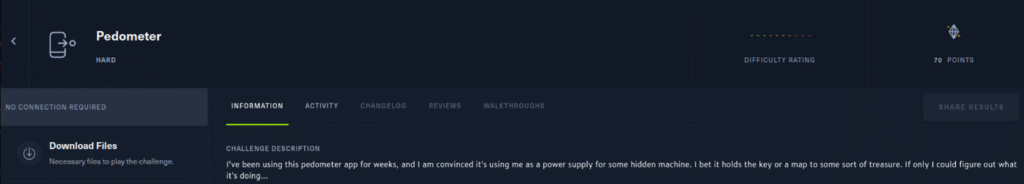

Description: I’ve been using this pedometer app for weeks, and I am convinced it’s using me as a power supply for some hidden machine. I bet it holds the key or a map to some sort of treasure. If only I could figure out what it’s doing…
Download the .zip file and extract this with the password hackthebox.
Decompile the apk with apktool
apktool d pedometer.apk

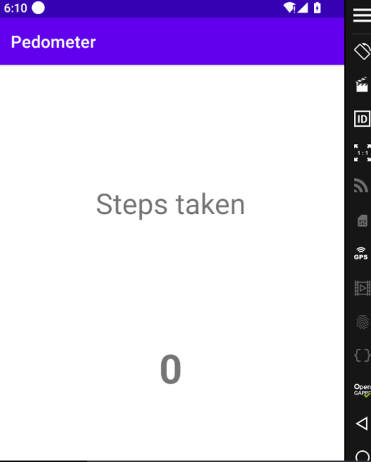

Let’s install the apk in our Android 12.
Let’s walk around the source code with JD-GUI.
We have just one activity, which is MainActivity.
MainActivity.java
public final class MainActivity extends l {
public SensorManager u;
public c v;
public final void n() {
Object object = getSystemService("sensor");
e.w(object, "null cannot be cast to non-null type android.hardware.SensorManager");
object = object;
this.u = (SensorManager) object;
object = object.getDefaultSensor(1);
SensorManager sensorManager = this.u;
if (sensorManager != null) {
sensorManager.registerListener((SensorEventListener) new a(this), (Sensor) object, 3);
return;
}
object = new d("lateinit property sensorManager has not been initialized");
e.c1((RuntimeException) object);
throw object;
}
public final void onCreate(Bundle paramBundle) {
super.onCreate(paramBundle);
setContentView(2131427356);
c c1 = new c(0);
a a = new a(this);
StringBuilder stringBuilder = new StringBuilder("activity_rq#");
stringBuilder.append(((k) this).h.getAndIncrement());
String str = stringBuilder.toString();
d d = ((k) this).i.c(str, (r) this, c1, a);
if (e.a((Context) this, "android.permission.ACTIVITY_RECOGNITION") == 0) {
n();
} else {
d.w1();
}
this.v = new c(this);
}
}
This code initialize the step sensor (accelerometer) and trigger the execution of the malicious logic (or challenge) when it detects movement:
c c1 = new c(0);
Creates an instance of a permissions handler (ActivityResultContract, from packageb.c) that asks for permissions.a a = new a(this);
Creates an anonymous class (u1.a) that extendsSensorEventListener, in charge of handling sensor events.d = ((k)this).i.c(...)
Registers a handler for the response of theACTIVITY_RECOGNITIONpermission. If already granted, callsn(). If not, it triggers the permission request.this.v = new c(this);
Here is the key. It creates an instance ofu1.c, which opensassets/a(the bytecode of the virtual machine). That is, it prepares the VM to be used later.
What is a Virtual Machine (VM)?
A virtual machine (VM) in this context is a custom interpreter that executes specific intermediate instructions, often encrypted or obfuscated, without relying on the original language or architecture of the device.
In this challenge, the VM is fed by instructions stored in assets/a, and executes each in response to accelerometer events.
This file contains instructions for the VM encrypted by dynamic XOR with a d value that is modified during execution.
Where find the assets/a file?
When we decompile the apk file with apktool, inside of the new directory, we can found the assets directory.
file a
Output:
a: data
strings a
Output:
|V|"Lu8u
E111A
Ar rVB^
nIMI(yd
Tuuu*E^
s%C5
lR\^a^9nYrY izSz
JCYC
hexdump a
Output:
0000000 0101 0001 0101 0101 0101 0101 0101 0101
0000010 20f0 0040 20f1 0040 20f2 0040 20f0 0040
0000020 2a01 2bf3 2b60 1b1d 567c 227c 754c 7538
0000030 4508 3131 4131 7101 7189 41fa 0972 5672
0000040 5e42 5e96 6ede 4d49 2849 6479 64dd 54a9
0000050 7575 2a75 5e45 5eca 6eb9 c872 8372 4a42
0000060 4ad5 7aa7 1173 2573 3543 3591 05fc 0d6c
0000070 526c 5e5c 5e61 6e39 7259 0959 7a69 7a53
0000080 4a11 5943 0d43 5573 55bd 65f5 ffbc 0000
000008f
Let’s continue with the challenge.
Example:
Instead of directly coding instructions like “add two numbers” in Java, the application delegates that logic to a VM. This machine reads opcodes such as PUSH, ADD, XOR, BUILD_FLAG, etc., from a binary file and executes the operations dynamically.
This technique is common in malware, emulators, and also in CTFs to hide the real logic of a program.
What are Opcodes?
The opcodes (operation codes) are numeric codes that tell the VM which operation to execute. They are the basis of the bytecode interpreted by the virtual machine.
In this challenge, the opcodes are defined by enum u1.b.
package u1;
public enum b {
public final int a;
b(String paramString) {
this.a = this$enum$index;
}
}
What are the challenge opcodes?
These were extracted using Frida with the following script:
Java.perform(function () {
var Op = Java.use("u1.b");
var vals = Op.values();
for (var i = 0; i < vals.length; i++) {
console.log(i + " => 0x" + vals[i].a.value.toString(16));
}
});
Output:
0 => 0x0
1 => 0x1
2 => 0x2
3 => 0x10
4 => 0x11
5 => 0x12
6 => 0x13
7 => 0x14
8 => 0x20
9 => 0x21
10 => 0x22
11 => 0x30
12 => 0x31
13 => 0x40
14 => 0x41
15 => 0xf0
16 => 0xf1
17 => 0xf2
18 => 0xf3
19 => 0xf4
20 => 0xff
Class u1.c
This class is the core of the VM, where the state, input and execution stack are stored.
The code:
public final class c {
public final MainActivity a;
public final InputStream b;
public final Stack c;
public int d;
public c(MainActivity paramMainActivity) {
this.a = paramMainActivity;
InputStream inputStream = paramMainActivity.getAssets().open("a");
e.x(inputStream, "main.assets.open(\"a\")");
this.b = inputStream;
this.c = new Stack();
}
public final int a() {
Stack<Integer> stack = this.c;
Integer integer = stack.peek();
stack.pop();
e.x(integer, "value");
return integer.intValue();
}
}
This class:
- Loads the
assets/afile asInputStream. - Initializes a LIFO stack.
- Declares a
dregister that is used for dynamic XOR operations.
This class does not execute instructions, but is used by the interpreter (u1.a) to perform stack operations, read bytes from the file and maintain context between instructions.
Class u1.a implements SensorEventListener – Virtual Machine Interpreter
This class is the interpreter that executes instructions when motion is detected in the accelerometer:
package u1;
import android.hardware.Sensor;
import android.hardware.SensorEvent;
import android.hardware.SensorEventListener;
import com.rloura.pedometer.MainActivity;
public final class a implements SensorEventListener {
public final MainActivity a;
public int b;
public long c;
public a(MainActivity paramMainActivity) {
this.a = paramMainActivity;
}
public final void onAccuracyChanged(Sensor paramSensor, int paramInt) {}
public final void onSensorChanged(SensorEvent paramSensorEvent) {
// Byte code:
// 0: invokestatic getInstance : ()Ljava/util/Calendar;
// 3: invokevirtual getTimeInMillis : ()J
// 6: aload_0
// 7: getfield c : J
// 10: lsub
// 11: ldc2_w 300
// 14: lcmp
// 15: ifle -> 850
// 18: aload_0
// 19: invokestatic getInstance : ()Ljava/util/Calendar;
// 22: invokevirtual getTimeInMillis : ()J
// 25: putfield c : J
// 28: aload_1
// 29: invokestatic v : (Ljava/lang/Object;)V
// 32: aload_1
// 33: getfield values : [F
// 36: astore_1
// 37: iconst_0
// 38: istore_2
// 39: aload_1
// 40: iconst_0
// 41: faload
// 42: f2i
[...]
[...]
[...]
[...]
Notice that we have 850 commented lines.
This is bytecode that JD-GUI try understand.
Obviously, this code is a little hard to understand. So we can use the AI power for “convert/translate” the code.
You can choose literally any kind of language programming.
I use Claude AI and convert the bytecode to java code for a better understanding.
public final void onSensorChanged(SensorEvent paramSensorEvent) {
// We check if at least 300ms have elapsed since the last update.
if (Calendar.getInstance().getTimeInMillis() - this.c > 300) {
// We update the time of the last update
this.c = Calendar.getInstance().getTimeInMillis();
// We obtain the sensor values
float[] values = paramSensorEvent.values;
// If the absolute value of the first value is greater than 6 (probably the acceleration)
if (Math.abs((int)values[0]) > 6) {
// We increase the step counter
int stepCount = this.b;
stepCount++;
this.b = stepCount;
// We updated the user interface with the new step count.
MainActivity mainActivity = this.a;
((TextView) mainActivity.findViewById(2131231140)).setText(String.valueOf(stepCount));
// Check if the step reader is initialized
u1.c stepReader = mainActivity.v;
if (stepReader != null) {
InputStream inputStream = stepReader.b;
// We check if there is data available to read
if (inputStream.available() <= 0) {
return;
}
// We read a byte from the input stream
int opCode = inputStream.read();
int accumulator = stepReader.d;
// We look for the operation corresponding to the operation code
u1.b[] operations = u1.b.values();
boolean found = false;
for (u1.b operation : operations) {
if (operation.a == (opCode ^ accumulator)) {
found = true;
// We process the operation according to its ordinal
int ordinal = operation.ordinal();
Stack<Integer> stack = stepReader.c;
MainActivity activity = stepReader.a;
switch (ordinal) {
case 0: // SKIP
int bytesToSkip = inputStream.available();
inputStream.skip(bytesToSkip);
break;
case 1: // READ_XOR
int value = inputStream.read();
int result = accumulator ^ value;
stack.push(result);
break;
case 2: // POP
stack.pop();
break;
case 3: // ADD
int a = stepReader.a();
int b = stepReader.a();
stack.push(b + a);
break;
case 4: // SUB
int minuend = stepReader.a();
int subtrahend = stepReader.a();
stack.push(subtrahend - minuend);
break;
case 5: // MUL
int factor1 = stepReader.a();
int factor2 = stepReader.a();
stack.push(factor2 * factor1);
break;
case 6: // DIV
int divisor = stepReader.a();
int dividend = stepReader.a();
stack.push(dividend / divisor);
break;
case 7: // MOD
int modulo = stepReader.a();
int modDividend = stepReader.a();
stack.push(modDividend % modulo);
break;
case 8: // EQUALS
boolean isEqual = stepReader.a() == stepReader.a();
stack.push(isEqual ? 1 : 0);
break;
case 9: // LESS_THAN
boolean isLessThan = stepReader.a() > stepReader.a();
stack.push(isLessThan ? 1 : 0);
break;
case 10: // GREATER_THAN
boolean isGreaterThan = stepReader.a() < stepReader.a();
stack.push(isGreaterThan ? 1 : 0);
break;
case 11: // IS_ZERO
boolean isZero = stepReader.a() == 0;
stack.push(isZero ? 1 : 0);
break;
case 12: // XOR
int xorA = stepReader.a();
int xorB = stepReader.a();
int xorResult = xorA ^ xorB;
stack.push(xorResult);
stepReader.d = xorResult;
break;
case 13: // PUSH_IF_ONE
if (stepReader.a() == 1) {
int valueToPush = stepReader.a();
stepReader.d = valueToPush;
}
break;
case 14: // SET_ACC
int newAccumulator = stepReader.a();
stepReader.d = newAccumulator;
break;
case 15: // CHECK_CHARGING
BatteryManager batteryManager = (BatteryManager) activity.getSystemService("batterymanager");
Intent batteryStatus = activity.registerReceiver(null, new IntentFilter("android.intent.action.BATTERY_CHANGED"));
int status = -1;
if (batteryStatus != null) {
status = batteryStatus.getIntExtra("status", -1);
}
boolean isCharging = status == 2 || status == 5;
boolean result1 = batteryManager.isCharging() || isCharging;
stack.push(result1 ? 1 : 0);
break;
case 16: // CHECK_AIRPLANE_MODE
boolean airplaneMode = Settings.System.getInt(activity.getContentResolver(), "airplane_mode_on", 0) != 0;
stack.push(airplaneMode ? 1 : 0);
break;
case 17: // CHECK_CONNECTIVITY
ConnectivityManager connectivityManager = (ConnectivityManager) activity.getSystemService("connectivity");
boolean isConnected = false;
if (connectivityManager.getActiveNetworkInfo() != null) {
NetworkInfo networkInfo = connectivityManager.getActiveNetworkInfo();
isConnected = networkInfo.isConnected();
}
stack.push(isConnected ? 1 : 0);
break;
case 18: // LOAD_ACC
int loadedValue = stepReader.a();
stepReader.d = loadedValue;
break;
case 19: // RESET_ACC
stepReader.d = 0;
break;
case 20: // READ_STRING
char[] charArray = new char[0];
for (int i = 1; i < 22; i++) {
char c = (char) stepReader.a();
charArray = Arrays.copyOf(charArray, charArray.length + 1);
charArray[charArray.length - 1] = c;
}
String resultString = new String(charArray);
((TextView) activity.findViewById(2131230911)).setText(resultString);
break;
default:
// Operation not recognized
break;
}
break;
}
}
// If a valid operation was not found
if (!found) {
throw new NoSuchElementException("Array contains no element matching the predicate.");
}
} else {
// The stepReader is not initialized
RuntimeException e = new RuntimeException("lateinit property stepReader has not been initialized");
throw e;
}
}
}
}
Understanding its behavior
- Runs whenever there is a significant change in motion.
- Reads a byte from file
a. - Decrypts it with dynamic XOR using the value
d. - Finds what operation it represents (using enum
u1.b). - Executes the operation by manipulating the stack or updating
d. - If the opcode is
0xFF(BUILD_FLAG), it rebuilds the flag from the stack and displays it.
This is a typical implementation of a minimalist stack-based VM, which executes bytecode instruction by instruction.
Getting the flag
The Python script replicates the VM, decrypting and executing the instructions in the file to obtain the flag.
data_bytes_le = [
0x01, 0x01, 0x01, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01,
0xf0, 0x20, 0x40, 0x00, 0xf1, 0x20, 0x40, 0x00, 0xf2, 0x20, 0x40, 0x00, 0xf0, 0x20, 0x40, 0x00,
0x01, 0x2a, 0xf3, 0x2b, 0x60, 0x2b, 0x1d, 0x1b, 0x7c, 0x56, 0x7c, 0x22, 0x4c, 0x75, 0x38, 0x75,
0x08, 0x45, 0x31, 0x31, 0x31, 0x41, 0x01, 0x71, 0x89, 0x71, 0xfa, 0x41, 0x72, 0x09, 0x72, 0x56,
0x42, 0x5e, 0x96, 0x5e, 0xde, 0x6e, 0x49, 0x4d, 0x49, 0x28, 0x79, 0x64, 0xdd, 0x64, 0xa9, 0x54,
0x75, 0x75, 0x75, 0x2a, 0x45, 0x5e, 0xca, 0x5e, 0xb9, 0x6e, 0x72, 0xc8, 0x72, 0x83, 0x42, 0x4a,
0xd5, 0x4a, 0xa7, 0x7a, 0x73, 0x11, 0x73, 0x25, 0x43, 0x35, 0x91, 0x35, 0xfc, 0x05, 0x6c, 0x0d,
0x6c, 0x52, 0x5c, 0x5e, 0x61, 0x5e, 0x39, 0x6e, 0x59, 0x72, 0x59, 0x09, 0x69, 0x7a, 0x53, 0x7a,
0x11, 0x4a, 0x43, 0x59, 0x43, 0x0d, 0x73, 0x55, 0xbd, 0x55, 0xf5, 0x65, 0xbc, 0xff, 0x00, 0x00
]
opcode_by_value = {
0x0: 0, 0x1: 1, 0x2: 2, 0x10: 3, 0x11: 4, 0x12: 5, 0x13: 6, 0x14: 7,
0x20: 8, 0x21: 9, 0x22: 10, 0x30: 11, 0x31: 12, 0x40: 13, 0x41: 14,
0xF0: 15, 0xF1: 16, 0xF2: 17, 0xF3: 18, 0xF4: 19, 0xFF: 20
}
class VM:
def __init__(self, code):
self.code = code
self.ptr = 0
self.stack = []
self.d = 0
self.flag = None
def read_byte(self):
if self.ptr >= len(self.code):
return None
b = self.code[self.ptr]
self.ptr += 1
return b
def pop(self):
return self.stack.pop() if self.stack else 0
def push(self, val):
self.stack.append(val & 0xFFFFFFFF)
def run(self):
while self.ptr < len(self.code):
byte = self.read_byte()
if byte is None:
break
opcode_val = byte ^ self.d
ordinal = opcode_by_value.get(opcode_val)
if ordinal is None:
continue
if ordinal == 0: # SKIP_REST
continue
elif ordinal == 1: # PUSH
param = self.read_byte()
if param is None:
break
val = param ^ self.d
self.push(val)
elif ordinal == 2: # POP
self.pop()
elif ordinal == 3: # ADD
a, b = self.pop(), self.pop()
self.push(b + a)
elif ordinal == 4: # SUB
a, b = self.pop(), self.pop()
self.push(b - a)
elif ordinal == 5: # MUL
a, b = self.pop(), self.pop()
self.push(b * a)
elif ordinal == 6: # DIV
a, b = self.pop(), self.pop()
self.push(b // a if a else 0)
elif ordinal == 7: # MOD
a, b = self.pop(), self.pop()
self.push(b % a if a else 0)
elif ordinal == 8: # EQ
a, b = self.pop(), self.pop()
self.push(1 if b == a else 0)
elif ordinal == 9: # LT
a, b = self.pop(), self.pop()
self.push(1 if a < b else 0)
elif ordinal == 10: # GT
a, b = self.pop(), self.pop()
self.push(1 if a > b else 0)
elif ordinal == 11: # NOT
self.push(1 if self.pop() == 0 else 0)
elif ordinal == 12: # XOR and update d
a, b = self.pop(), self.pop()
res = b ^ a
self.d = res & 0xFF
self.push(res)
elif ordinal == 13: # COND_SKIP
cond = self.pop()
if cond == 1:
n = self.pop()
self.ptr += n
elif ordinal == 14: # SKIP_N
n = self.pop()
self.ptr += n
elif ordinal == 15: # BATTERY_STATUS
self.push(0)
elif ordinal == 16: # AIRPLANE_MODE
self.push(0)
elif ordinal == 17: # CONNECTIVITY
self.push(1)
elif ordinal == 18: # POP_TO_D
self.d = self.pop() & 0xFF
elif ordinal == 19: # RESET_D
self.d = 0
elif ordinal == 20: # BUILD_FLAG
chars = [chr(self.pop() & 0xFF) for _ in range(22)]
self.flag = ''.join(chars[::-1])
break
return self.flag
# execute VM
vm = VM(data_bytes_le)
flag = vm.run()
correct_flag = flag[::-1] # -1 to the flag
print("Flag:", correct_flag)
Explanation of the script
Initialization
ptr: pointer to the current byte.stack: execution stack where intermediate values are stored.d: dynamic XOR value used to decrypt instructions.flag: final result extracted.
Main execution
- Reads each byte and performs XOR with
dto determine the opcode. - The opcode defines the specific operation to be executed.
- Updates the value of d according to specific instructions to decrypt subsequent bytes.
Key instructions explained
- PUSH (
0x01): Places an encrypted value on the stack. - XOR and update
d(0x31): Performs XOR with values on the stack and updatesd. - COND_SKIP (
0x40): Skips instructions if a specific condition is met. - BUILD_FLAG (
0xFF): Generates the flag by reading 22 characters from the stack.
Flag: HTB{X_m4rKs_teH_sp0t}
I hope you found it useful (:
Leave a Reply
