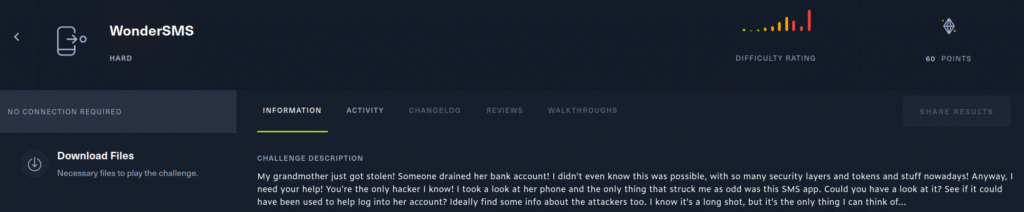

Difficult: Hard
Category: Mobile
OS: Android
Description: My grandmother just got stolen! Someone drained her bank account! I didn’t even know this was possible, with so many security layers and tokens and stuff nowadays! Anyway, I need your help! You’re the only hacker I know! I took a look at her phone and the only thing that struck me as odd was this SMS app. Could you have a look at it? See if it could have been used to help log into her account? Ideally find some info about the attackers too. I know it’s a long shot, but it’s the only thing I can think of…
Download the .zip file and extract this with the password hackthebox.
Install the APK with ADB
adb install -r WonderSMS.apk
It appears to be an app for sending and receiving SMS messages.
Let’s use JADX-GUI for inspect the source code.
In the AndroidManifest.xml we can see the MainActivity class and the broadcast receiver SmsReceiver.
The package name is com.rloura.wondersms.
<activity
android:name="com.rloura.wondersms.MainActivity"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
<activity android:name="com.rloura.wondersms.ViewMessageActivity"/>
<activity android:name="com.rloura.wondersms.InfoActivity"/>
<activity android:name="com.rloura.wondersms.SendMessageActivity"/>
<receiver
android:name="com.rloura.wondersms.SmsReceiver"
android:enabled="true"
android:exported="true">
<intent-filter>
<action android:name="android.provider.Telephony.SMS_RECEIVED"/>
</intent-filter>
</receiver>
SmsReceiver.java:
public final class SmsReceiver extends BroadcastReceiver {
private final native ProcessedMessage processMessage(SmsMessage smsMessage);
@Override // android.content.BroadcastReceiver
public final void onReceive(Context context, Intent intent) {
SmsMessage[] messagesFromIntent = Telephony.Sms.Intents.getMessagesFromIntent(intent);
c.x(messagesFromIntent, "getMessagesFromIntent(...)");
for (SmsMessage smsMessage : messagesFromIntent) {
c.u(smsMessage);
if (processMessage(smsMessage) != null) {
MediaPlayer mediaPlayer = new MediaPlayer();
mediaPlayer.setDataSource((MediaDataSource) null);
mediaPlayer.start();
} else {
RingtoneManager.getRingtone(context, RingtoneManager.getDefaultUri(2)).play();
}
}
}
}
This receive capture the messages that income to our device.
And then, forwards to the native method processMessage.
In the Java code, handle a media playback for such features, and use native code.
This can be suspicious, due the sensitivity of SMS content (2FA tokens).
Let’s decompile the .apk file with APKTool
apktool d WonderSMS.apk
We can get the libaudio.so library in the /WonderSMS/lib/x86_64/libaudio.so directory.
Import this using Ghidra.

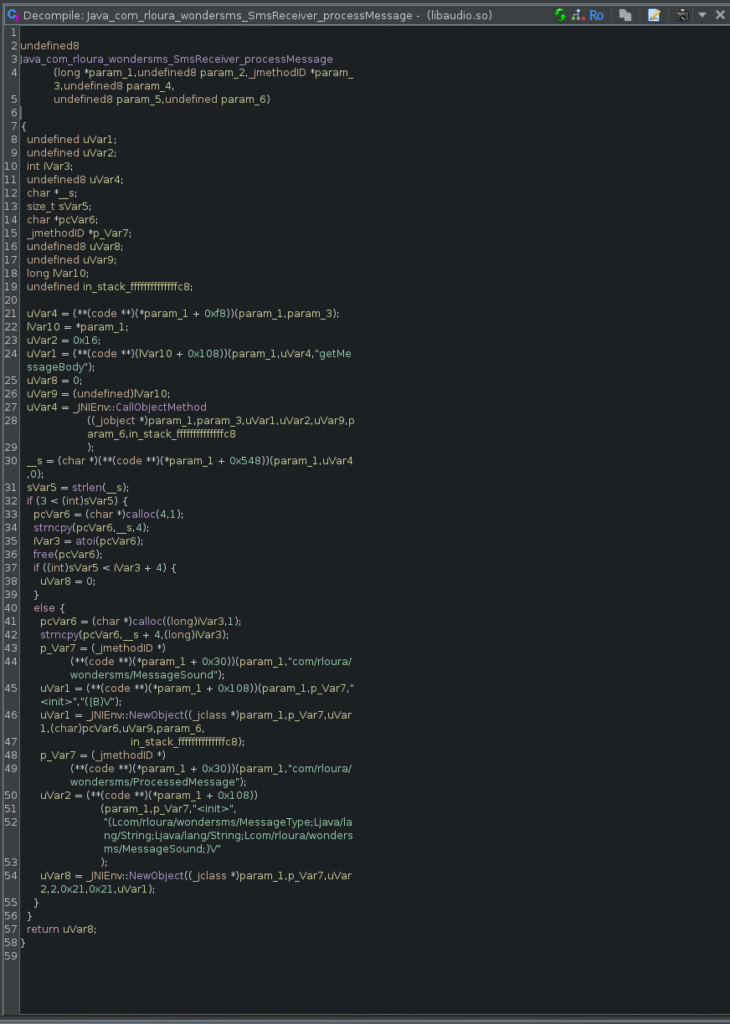

Notice the Java_com_rloura_wondersms_SmsReceiver_processMessage function.
We can see in the line 44 that the MessageSound class is initialized.
Reading the content of the function JNI_OnLoad under the Symbol Tree → Functions → J, it turns out that the app overrides the usual resolution of processMessage by manually calling RegisterNatives.
According to the official documentation, JNI_OnLoad is a system callback function that is called when a native library is loaded into an application, and it is used for performing library-level initializations.
This method allows overriding the initial processMessage function, making the analysis process more difficult.
The real implementation of processMessage is a method of the processor class. We can navigate to this function by double-clicking on the PTR_s_processMessage_001ec9f0, and then on processor::processMessage from the Listing view. Or, we can simply search for processMessage in the Symbol Tree and looking at the export functions.
Double click and we can see the code of the implementation of processor::processMessage
Here, the contents of the SMS message are first extracted and converted to lowercase by calling the toLowerCase method (line 65). The message is then checked to ensure all characters are alphabetic or whitespaces.
This check is specifically performed on the first 28 characters of the message.
After this, the program checks the length of the SMS message body, ensuring it contains more than 36 characters.
If these conditions are met, the SMS message body is then passed to the method f315732804 (line 108 in the code) for further handling, as shown in the picture below.

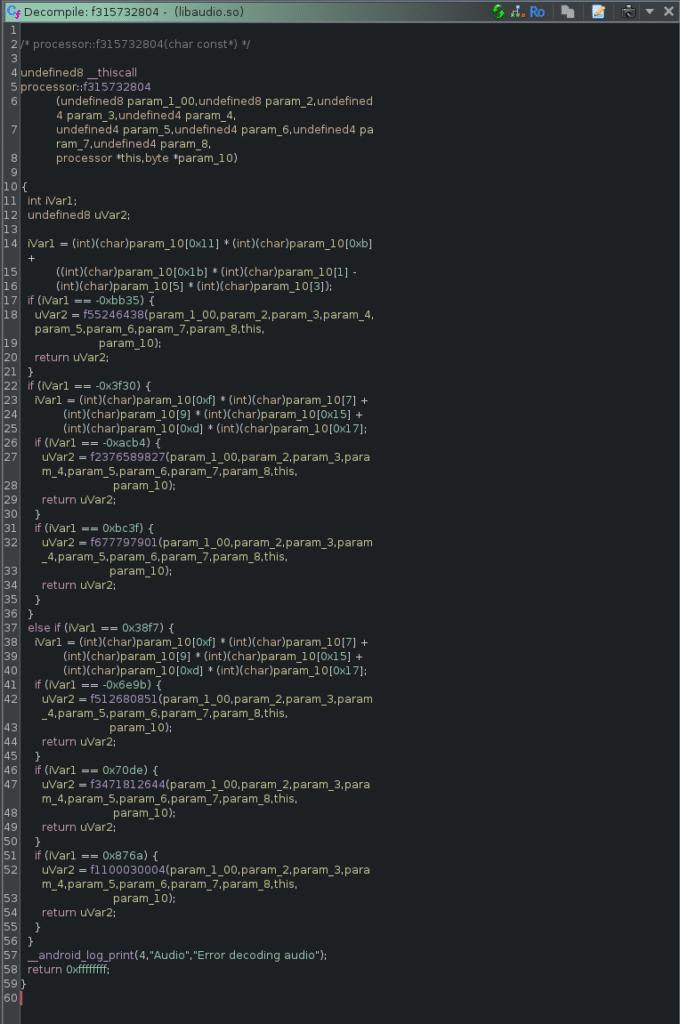

Let’s move to f315732804, here’s the code:
Each of these checks if certain characters of the SMS message meet specific conditions, then directs the control flow to various additional checks based on the outcome of these conditions.
Despite the complex network of control paths, all paths eventually converge at a single critical check: the check_extension method in the processor class.

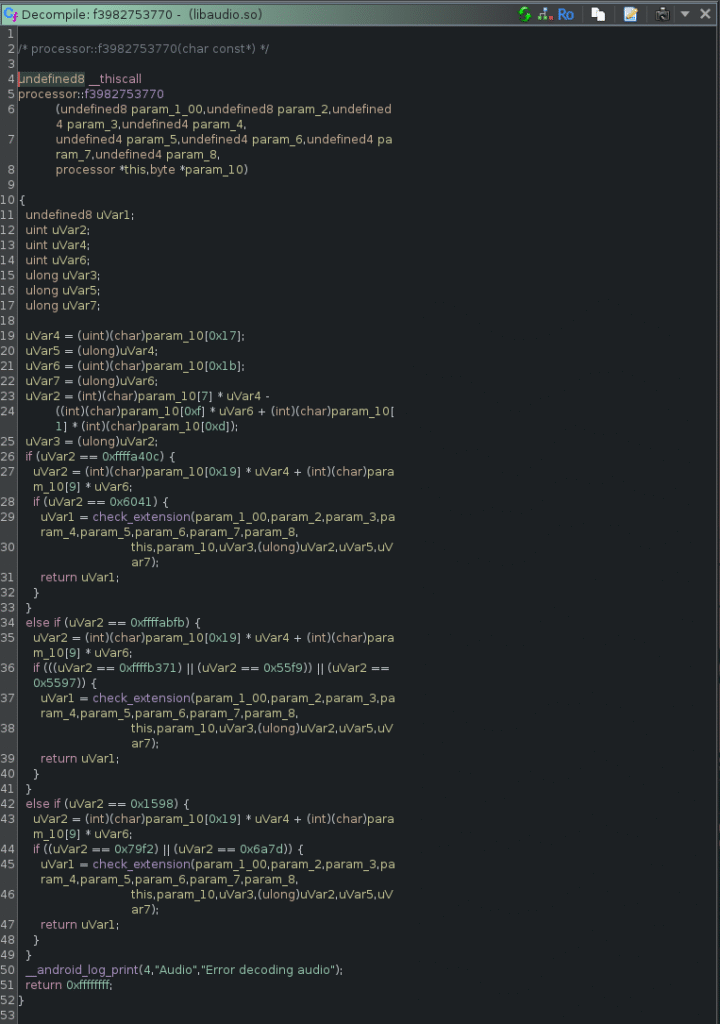

Exploring the method f55246438 and subsequently f3982753770 leads to the discovery of the check_extension method, although other combinations of functions also lead to the same endpoint.
Let’s entry to check_extension function. We can notice that is a huge code.
This function performs some final checks and if they are met, a message-dependent string is constructed.

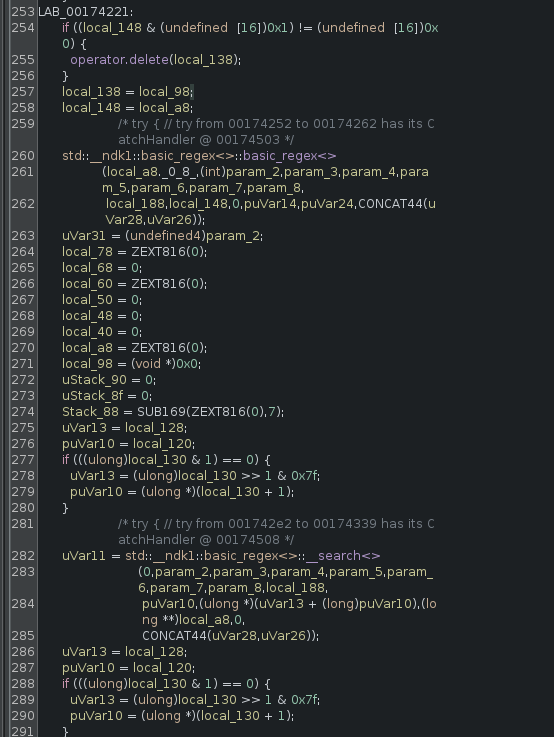

Then, a regex-based search is performed on the message body to identify specific patterns (std::ndk1::basic_regex).

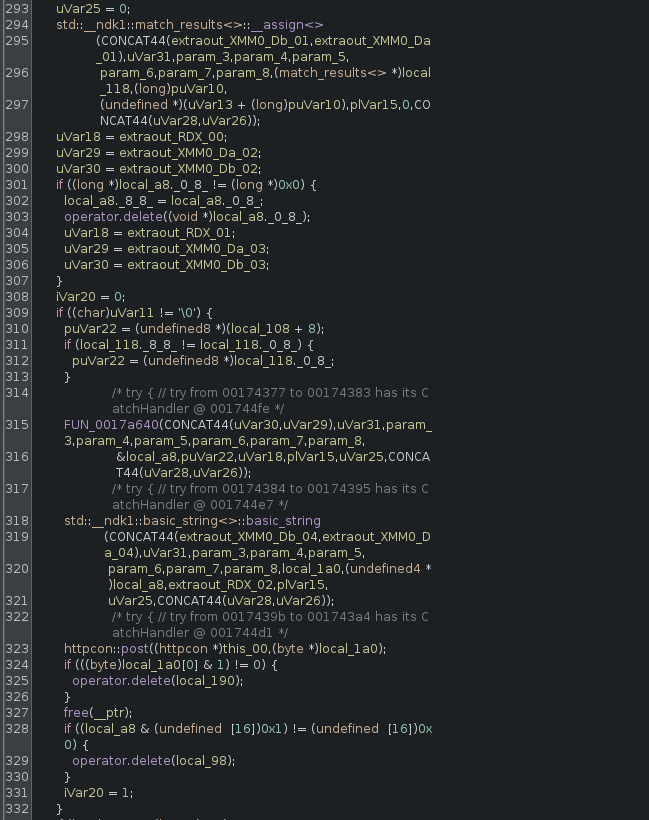

Upon finding a match, which is managed through the RegexMatchResults object, it constructs an HTTP POST request where the matched data is sent to a specified endpoint. This operation is handled by the httpcon::post method call.
Let’s inspect the __android_log_print call.
Therefore, the message-dependent string we defined earlier is the URL. The data to be sent is stored in the second parameter, that is param_1.
The android_log_print simulates a POST request that would be made in an actual malicious application.
The second argument of the basic_regex constructor is RegexPatternStr, which does not appear to be initialized anywhere. We identified this argument as the regex pattern string by referring to the basic_regex documentation linked above. In other words, this is the string against which the message body will be evaluated for a match. Notably, before the construction of the regex object, there are several calls to the get_encoding method.

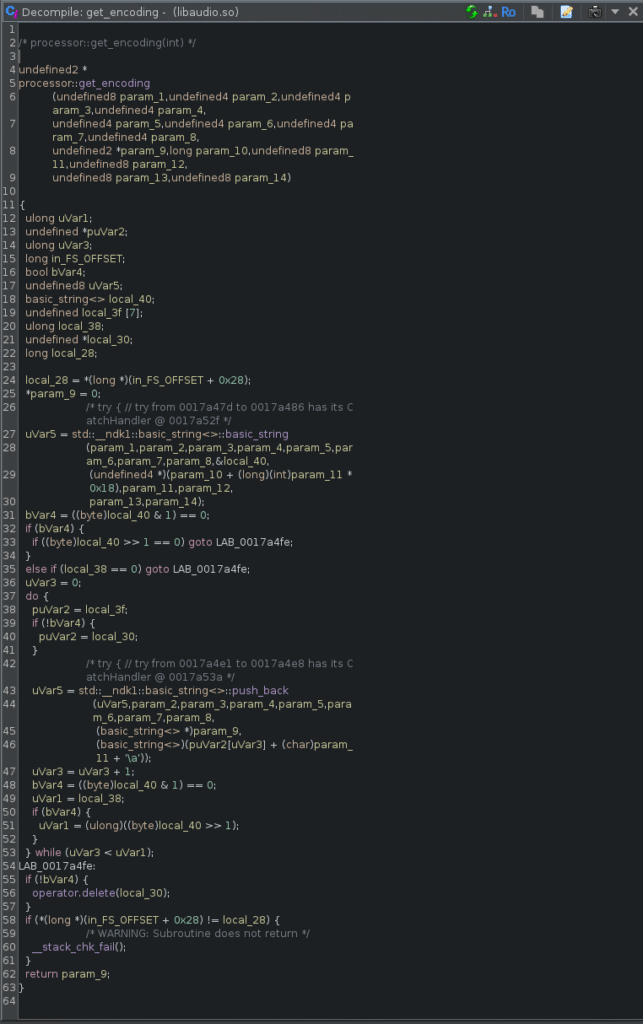

The body of the function get_encoding is shown below:
The value of RegexPatternStr is assigned by get_encoding:
\.mp3\.mp4\.ogg\.wav\.midi\d{6}
The first five are common file extensions for audio and video files, so there is nothing particularly interesting about them. However, the last string seems oddly out of place. Exfiltrating 6 digits from an SMS message can be quite dangerous, as it would catch most 2FA tokens.
Using angr to find the correct call path
In essence, angr systematically explores all feasible execution paths of a binary and analyzes the outcomes, similar to using a map to identify the optimal route without traversing every possible path.
Since angr does not actually run the application, the architecture doesn’t matter. Thus, we will simply choose the x86_64 version of libaudio.so
Let’s create a python script:
import angr
import claripy
proj = angr.Project("./libaudio.so", auto_load_libs=False)
arg = claripy.BVS("msg", 36 * 8)
arg_p = proj.factory.callable.PointerWrapper(arg, buffer=True)
state = proj.factory.call_state(0x473420, 0, arg_p, prototype='void f(void *, char *)')
state.options.add(angr.options.ZERO_FILL_UNCONSTRAINED_MEMORY)
state.options.add(angr.options.ZERO_FILL_UNCONSTRAINED_REGISTERS)
for b in arg.chop(8):
state.add_constraints(claripy.Or(b == ' ', claripy.And(b >= 'a', b <= 'z')))
sm = proj.factory.simgr(state)
print("Exploring paths...")
sm.explore(find=0x4741f8)
total = len(sm.found)
print(f"Exploration finished with {total} path(s) found")
print("Checking satisfiability")
sols = []
for i in range(total):
print(f"Progress: {i + 1}/{total} ", end='\r', flush=True)
guess = sm.found[i]
if guess.solver.satisfiable():
sols.append(guess.solver.eval(arg, cast_to=bytes))
print("\nSolution(s)")
for i in range(len(sols)):
print(repr(sols[i]))
Output:
Exploring paths...
Exploration finished with 1 path(s) found
Checking satisfiability
Progress: 1/1
Solution(s)
b'ko r lkgkn vprdfkcpt n o e kpdd'
The message is non-deterministic, so its output varies each time. Some even-indexed characters aren’t parsed correctly. Since the app tries to exfiltrate a 6-digit SMS code but our script can’t handle numbers, we know the last 6 chars (e.g., kpdd) are wrong and must be guessed.
To simplify, we replace those uncertain chars with X. Leaving spaces intact improves readability. The message becomes:b'Xo r lXgXn vXrXfXcXt n o e XXXX'
Since the app extracts 2FA codes via SMS, we infer the real format is:
Your login verification code: ######
Sending an SMS in that format (e.g., Your login verification code: 123456) triggers the exfil logic.
To test, just run this command for “auto-send” a SMS.
adb emu sms send 1234 "Your login verification code: 123456"
Finally, just need read to log message, which is a HTTP POST request like.
Uploading 123456 via POST to http://HTB{I_g3t_angr_3as1lY_aT_unicorn}
Flag: HTB{I_g3t_angr_3as1lY_aT_unicorn}
I hope you found it useful (:
